血管介入诊治是冠状动脉疾病诊治中一种安全有效的方法。至2020年,针对复杂冠状动脉疾病的介入治疗的数量将会达到现在的数倍[1]。血管介入手术中,手术人员需接近受检患者在长时间X射线透视环境下进行操作,相比其他手术,接受了较高的职业照射[2]和可能导致潜在的生物效应[3]。心血管介入手术人员,由于手术特殊性,职业照射量远高于其他血管介入手术人员。近年来,过量辐射风险已越来越引起了人们的重视和关注。剂量面积乘积(dose-area product,DAP)是测量仪器置于X射线管和患者体表之间,对通过的射线束进行测量所得数据(DAP=剂量×测量仪器面积),在临床职业照射环境研究中,许多研究针对DAP值与手术人员的辐射剂量之间联系做出了大量的论证[4],认为DAP值可作为介入手术辐射剂量评估的重要证据,并已被临床广泛接受和采用。本研究通过DAP数据库相关数据,对辐射风险做出早期预判和快速干预,从而实现降低临床介入人员辐射风险的目的。
资料与方法1.一般资料:回顾性分析2016年4月1日至6月30日院内心血管介入检查1 858例病例。数据库字段分别包括:检查日期、患者ID号、性别、年龄、身高、体重、手术类型(冠状动脉造影术、经皮冠状动脉介入治疗术、先天性心脏病治疗术、永久性起搏器植入术)、手术剂量参数(透视时间、透视DAP值、总DAP值)、数字减影血管造影(DSA)设备型号、手术主治医师、助手医师、配合护士,数据记录完全在Microsoft Office Excel表格中完成。
2.成像系统及方法:所有DAP数据均实时测自德国西门子AXIOM Artis FC和AXIOM Artis Zee Biplane数字减影血管造影(DSA)数字成像设备,分别为影像增强器(image intensifier,Ⅱ)和平板探测器(flat panel detector,FPD)成像系统。采集参数:透视与电影采集帧频均为15帧/s,自动曝光采集。数据信息来自术后设备文件检查协议,包括透视时间、透视DAP(Artis FC无此数据)和总DAP。根据设备成像系统分组,Ⅱ组1 242例病例,其中冠状动脉造影术(CAG) 589例,经皮冠状动脉介入治疗术(PCI) 521例;FPD组616例病例,其中CAG 327例,PCI 250例。分别行相关资料和同类手术数据比较与分析。
3.统计学处理:计量资料以x±s表示。采用SPSS 19.0软件进行分析。经正态性检验符合正态分布后应用独立样本t检验对成像设备分组CAG和PCI样本的体质量指数(BMI)、透视时间和DAP数据进行比较。P < 0.05为差异有统计学意义。
结果1. PCI及其他手术在不同成像设备的透视时间和DAP值:结果列于表 1。表 1显示Ⅱ成像系统累积病例数、透视时间均明显高于FPD成像系统,DAP值接近相等。FPD成像系统PCI透视剂量是电影采集剂量(PCI总DAP-透视DAP)的2.8倍。PCI总DAP值达9 517 926 μGy ·m2,占总样本DAP值的77%。

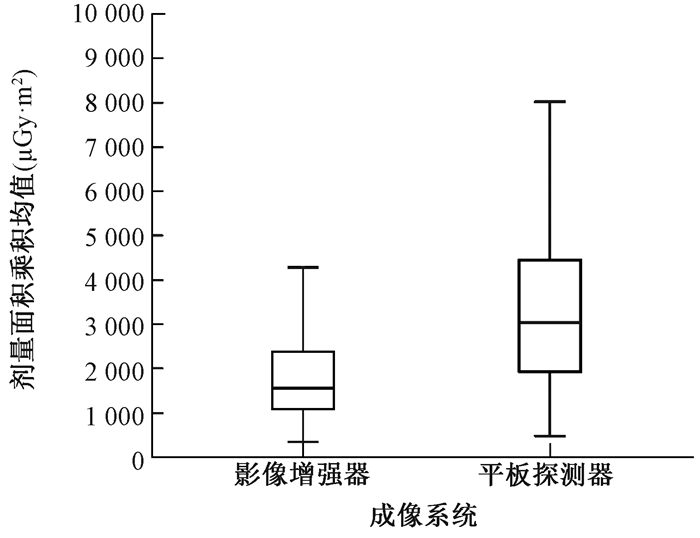

2.两种成像设备参数比较:结果列于表 2。由表 2可知,各组BMI差异均无统计学意义(P>0.05), Ⅱ和FPD成像设备CAG透视时间差异无统计学意义(P>0.05),PCI透视时间差异有统计学意义(t=-3.634,P < 0.05),CAG和PCI的DAP差异均有统计学意义(t=-10.664、11.239,P < 0.05)。FPD设备CAG检查DAP均值(3 718 μGy ·m2)高于Ⅱ设备(1 938 μGy ·m2),见图 1。
讨论
DSA设备均具备DAP采集功能,DAP是累积剂量与测量仪照射面积的乘积,不受X射线管与测量仪间的距离的变化而改变,对于术中需采用多方位、多角度采集的心血管介入手术,DAP监测有一定的优势,已被临床广泛作为辐射剂量监测依据。DAP数据库是便捷的获得辐射剂量证据的方法。
本研究Ⅱ组总透视时间高于FPD组75%,总DAP值低于FPD组,鉴于DAP值与透视时间有较好的正相关性[5],推测设备之间辐射剂量存在明显差异。不同成像设备同类资料比较,排除病例BMI干扰因素(DAP值与受检者BMI有正相关性),发现CAG透视时间差异较小,分析与检查技术要求相对简单和成熟有关;PCI透视时间存在差异主要受病变复杂、操作难度和术者技巧影响;接受CAG研究结果更具客观性。CAG结果显示,Ⅱ成像系统DAP值明显低于FPD成像系统,与Wiesinger等[6]报道相符。同时,FPD透视时间略少于Ⅱ,证明FPD设备的DAP值采集高于Ⅱ设备。从Biplane(FPD)成像系统的资料中提取BMI均值(27.1±1.3) kg/m2和透视时间(2.8±2.3) min的137例CAG样本,所获得的DAP数据为(4 157±2 698)μGy·m2,明显高于Kastrati等[7]报道西门子Biplane成像系统431例CAG样本,BMI(28.3±5.3) kg/m2,透视时间(4.6±4.3) min,DAP数据(3 193±2 358)μGy·m2。从而推断FPD成像系统采集剂量较高。对Ⅱ组剂量明显低于FPD组给出了充分的客观数据和确切的理论依据。本研究发现,FPD设备上PCI透视总DAP值明显高于造影,PCI总DAP值占全部样本总DAP值的77%,表明心血管介入中辐射剂量的来源主要是PCI。推测降低PCI手术透视时间是降低心血管介入手术辐射风险的重要手段。
应对策略主要有:联系设备工程师,对FPD成像参数进行调整;满足临床手术信息前提下,降低手术辐射剂量;暂时减少Biplane成像系统手术安排,对已安排手术采用改变采集协议,建议FPD成像系统造影采集帧频由15帧/s改变为10帧/s,透视帧频则从15帧/s降至7.5帧/s,尤其在PCI手术中,这将有效降低操作人员30%和受检患者19%的辐射剂量[8],积极推荐术中透视序列储存替代电影采集(Artis FC无此功能)和尽量缩小缩光器的操作方法[9]。
在职业辐射防护中,DAP数据库具备采集便捷、数据详细和随时分析的优点,可及时发现辐射剂量差异和来源并采取干预,相比剂量计Hp (10) 的信息量和直读式剂量计[10]的成本有一定优势,为临床辐射防护和个人健康及剂量管理制度实施提供了有效、细化的数据,是临床介入应用中值得推广的辐射防护优化工具。不足之处包括:录入数据为手工输入,存在耗时和差错,需要反复纠正和确认。数据来自一个导管室,样本来源局限。因此,及早设计出DAP数据库相匹配的采集协议数据同步存储和分析软件,建立数据库的互联网共享,将为职业辐射风险防护的大数据分析提供更加快捷准确的宏观数据。
利益冲突 作者无利益冲突,排名无争议,未接受任何不当职务或财务利益作者贡献声明 丁海岭负责本论文的撰写;王永春、江薇参与数据收集和分析处理
